Find high - quality 20FT and 40FT Space Expandable Container Houses on sale. Factory - direct pricing from China, customizable options, and rapid delivery available.
Other Name:Space 20FT Expandable Container House/40FT Expandable Container House
Min.Order Quantity: 1 unit
Port of Loading: Qingdao/Tianjin port,China
Payment Terms: T/T , L/C at sight.etc
Main Market: Spain, Australia,the United Kingdom, Saudi Arabia, South Africa, Mexico etc
Name | Dimension | |||

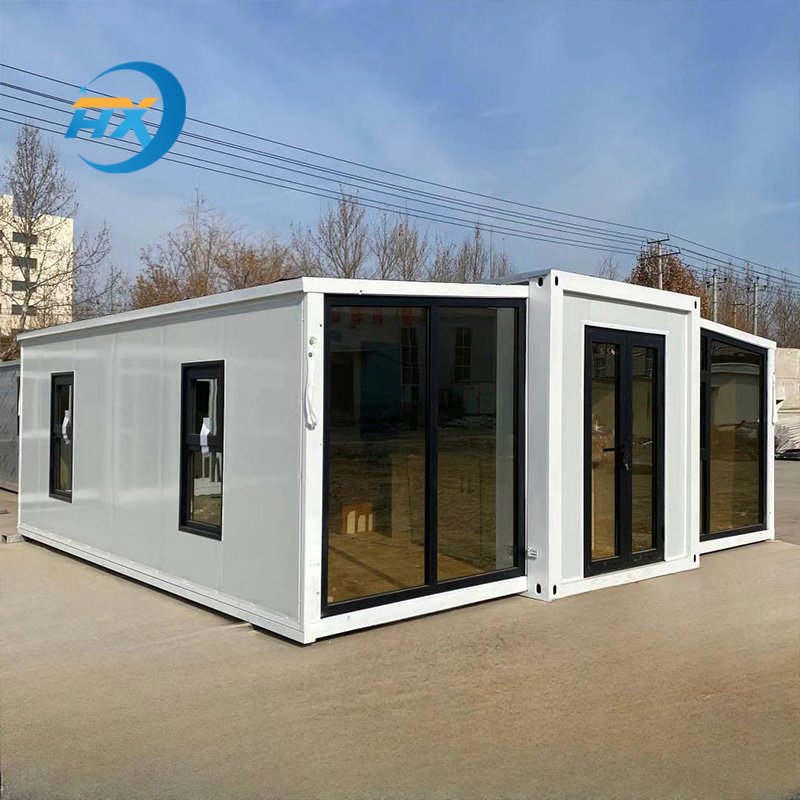

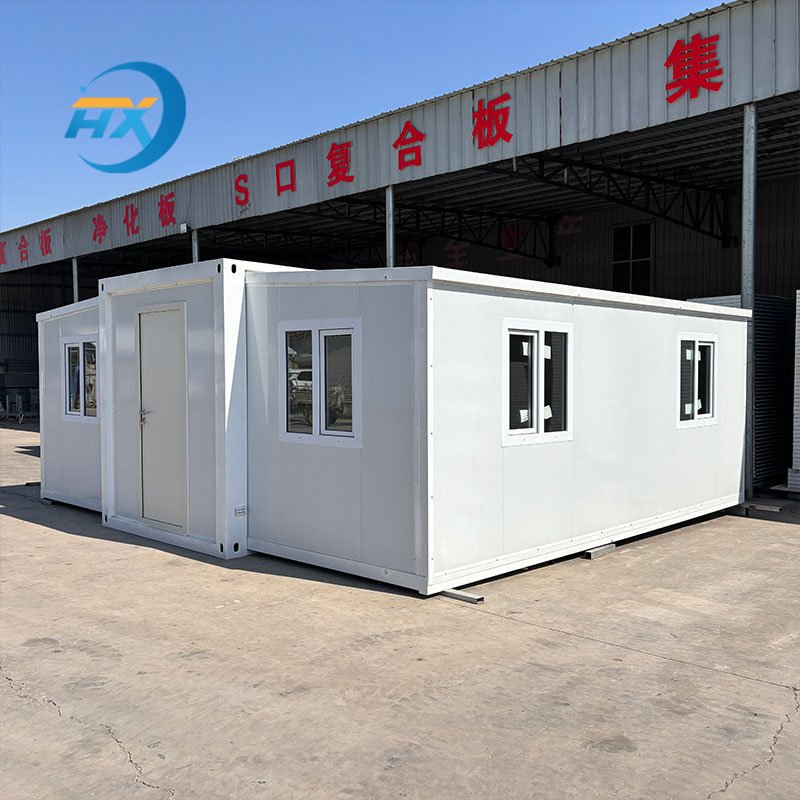

1 | 20ft expandable container house | Expand size（mm）：L5900*W6300*H2480 Interior size（mm）：L5640*W6140*H2240 Folded size（mm）：L5900*W2200*H2480 | ||
2 | 40ft expandable container house | Expand size（mm）：L11500*W6300*H2480 Interior size（mm）：L11540*W6080*H2200 Folded size（mm）：L11500*W2200*H2480 | ||
Detail configurations | ||||
| Bottom main beam | GALVANIZED SQUARE TUBE 80*100*2.5MM Q235； | ||
GALVANIZED SQUARE TUBE 80*40*1.5MM Q235； | ||||
GALVANIZED SQUARE TUBE 40*60*1.5MM Q235； | ||||
GALVANIZED FOLDING PARTS130*100*2.5MM Q235 | ||||
| GALVANIZED SQUARE TUBE 80*80*2.5MM Q235 | |||
P-SHAPED TUBE 80*40*1.5MM Q235 | ||||
GALVANIZED SQUARE TUBE 20*40*1.5MM Q235 | ||||
GALVANIZED SQUARE TUBE 60*40*1.5MM Q235 | ||||
Upright column | GALVANIZED FOLDING PARTS210*150*2.0MM Q235 | |||
Sub frame | P 80*40*1.5MM Q235 | |||
GALVANIZED FOLDING PARTS40*90*2.0MM Q235 | ||||
GALVANIZED SQUARE TUBE 60*40*1.5MM Q235 | ||||
Hinge | Galvanized thickened hinges Q235 | |||
Floor | Middle floor | 18mm CONCRETE FLOOR | ||
Floor on both sides | 18mm BAMBOO PLYWOOD | |||
Plastic flooring | 2.0mm Plastic Flooring | |||
Insulation wall
| Exterior wall | 75mm sandwich panel, color roll double-sided 0.25 (sandwich material with rock wool 80kg/m³,EPS, polyurethane selection) | ||
The standard sandwich material is 10kg/m ³ EPS | ||||
Partition | 50mm sandwich panel, color steel plate substrate double-sided 0.25. Insulation material as above ↑ | |||
Main roof and side roof | 75mm sandwich panel, color steel plate substrate double-sided 0.25. Insulation material as above ↑ | |||
Electrical equipment system
| Parameter | 1,Equipped with national standard wires as standard;incoming Line 6m2,Air conditioning socket 4m2,Ordinary socket 2.5m2,Lighting 1.5m2 (can customize circuits that meet certification requirements according to the country) | ||
2,Circuit breaker system, 1pc 2P32 leakage protector/2 P32A air switches 2pcs. | ||||
3,Lighting; LED * 6. | ||||
4,Socket; Standard three hole socket (socket standard can be configured according to customer requirements) | ||||
Door and window system | Entrance door | KFC double door entry, 5+12+5 hollow double glass tempered glass (Ford blue) | ||
Steel doors | 50 pin steel door | |||
Window | Standard plastic steel double glass sliding window 930*900*6; 500*500*1 | |||
Toilet(optional) | Bathroom materials | Toilet door glass door, integrated with shower (sliding door 8mm tempered glass), toilet, washbasin Shower | ||

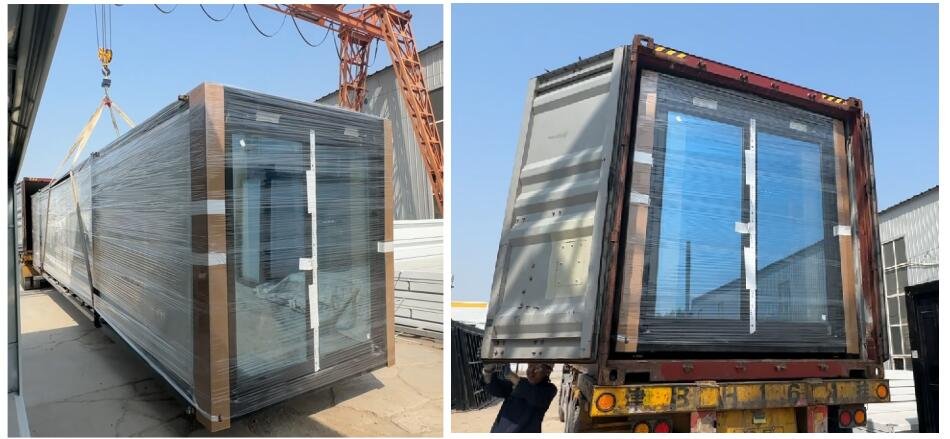

Packaging & Delivery
Our Service
√ Capacity: 20 units per Month
√ High quality and competitive price
√ Size&Decoration support customization
√ 24 hours efficient service
